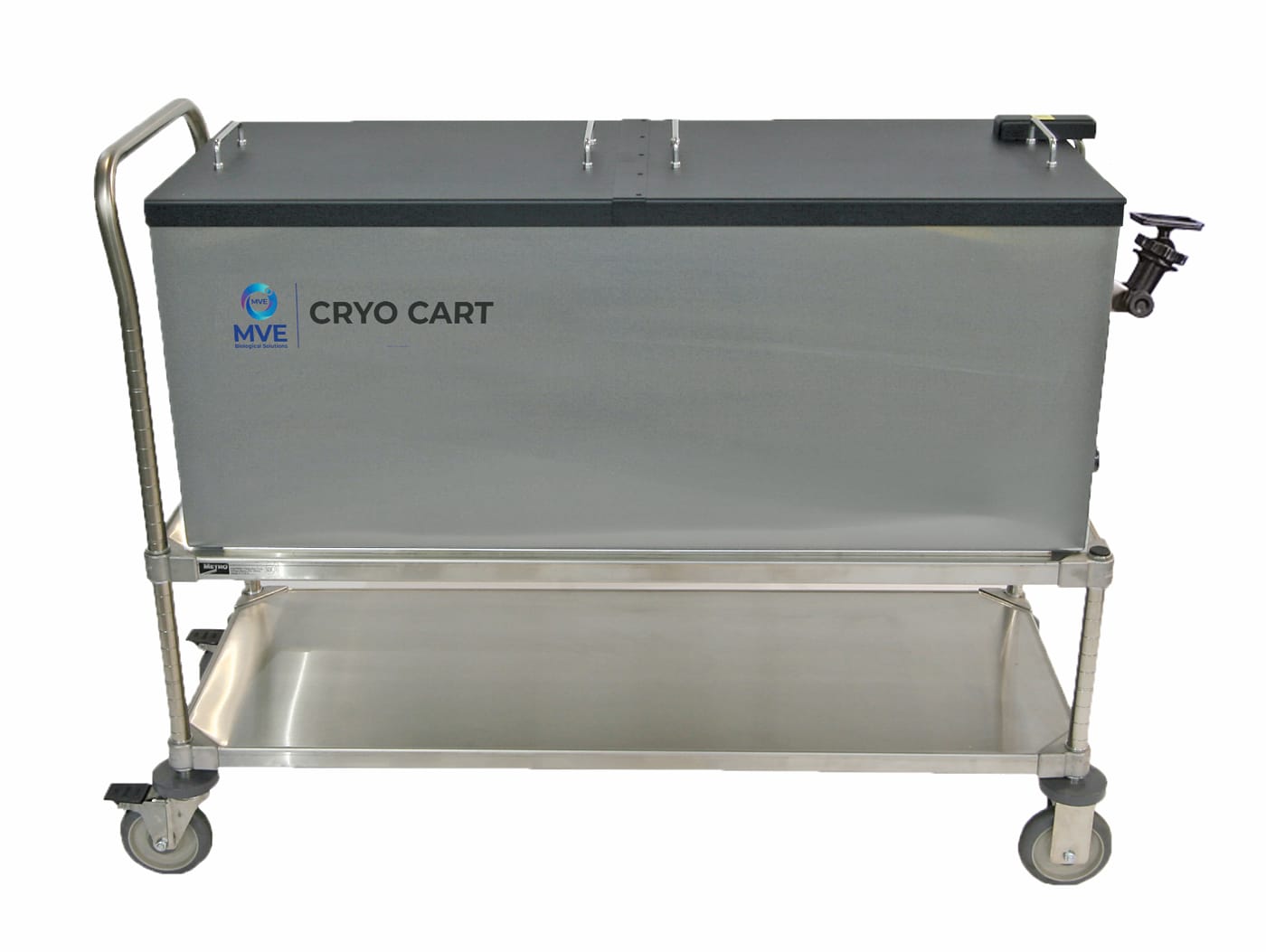

MVE Cryo Cart
LN2 to top of platform (est.): 39.5 L
Overall length: 54.46 in. (1383 mm)
Not designed for long-term storage (sheet note).
Description
The MVE CryoCart is a mobile cryogenic workbench and in-facility transport cart, not a long-term storage freezer. The official sheet says so directly. Estimated LN2 capacity without inventory, filled to the top of the platform, is 39.5 L. Overall length is 54.46 in. (1383 mm), width 20.16 in. (512 mm), and height 39.5 in. (1003 mm).
Inside length, width, and depth are 41.0, 13.2, and 15.4 in. Platform height is 4.5 in. Empty weight is 195 lb. (88 kg); weight with LN2 to the top of the platform is estimated at 266 lb. (121 kg). The sheet lists two 15-2 racks, a temperature monitor with a type T thermocouple, and an LN2 transfer-hose connection. Key Features also state an approximate 18-hour hold with the lid on, and up to eight hours with the lid open. Warranty is one year vacuum and 90 days parts -- shorter than the freezer sheets.
Key uses: Loading samples into canes, boxes, racks, or frames; moving samples between tanks in the same facility; a timed cryogenic workbench, not long-term storage.
Specifications
| Specification | MVE Cryo Cart |
|---|---|
| LN2 Capacity w/o Inventory To Top of Platform L est. | 39.5 L |
| Specification | MVE Cryo Cart |
|---|---|
| Overall Length | 54.46 in. (1383 mm) |
| Overall Width | 20.16 in. (512 mm) |
| Overall Height | 39.5 in. (1003 mm) |
| Lift Overall Height | 37.2 in. (944 mm) |
| Inside Length | 41.0 in. (1041 mm) |
| Inside Width | 13.2 in. (335 mm) |
| Inside Depth | 15.4 in. (391 mm) |
| Platform Height | 4.5 in. (114 mm) |
| Footprint | 17.6 x 51.7 in. (447 x 1313 mm) |
| Weight Empty | 195 lb. (88 kg) |
| Weight w/LN2 Filled to Top of Platform est. | 266 lb. (121 kg) |
| Number of Racks (15-2) | 2 |
Source: MVE CryoCart Spec Sheet (ML-000019 Rev 0). Figures are taken from that official MVE sheet only.
* The sheet states this unit is not designed for long-term storage.
One-year vacuum warranty; 90 days parts warranty.
The sheet states: Not designed for long-term storage.
Key Features on the sheet include an approximate hold time of 18 hours with the lid on, and up to eight hours with the lid open as a portable workbench (those figures are Key Features, not the performance table).
