Description

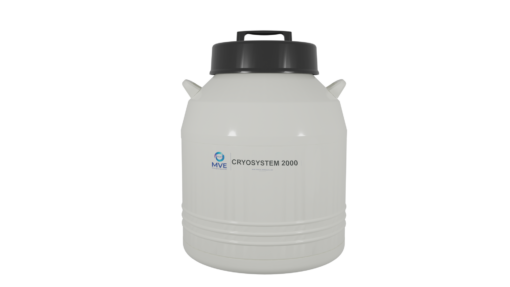

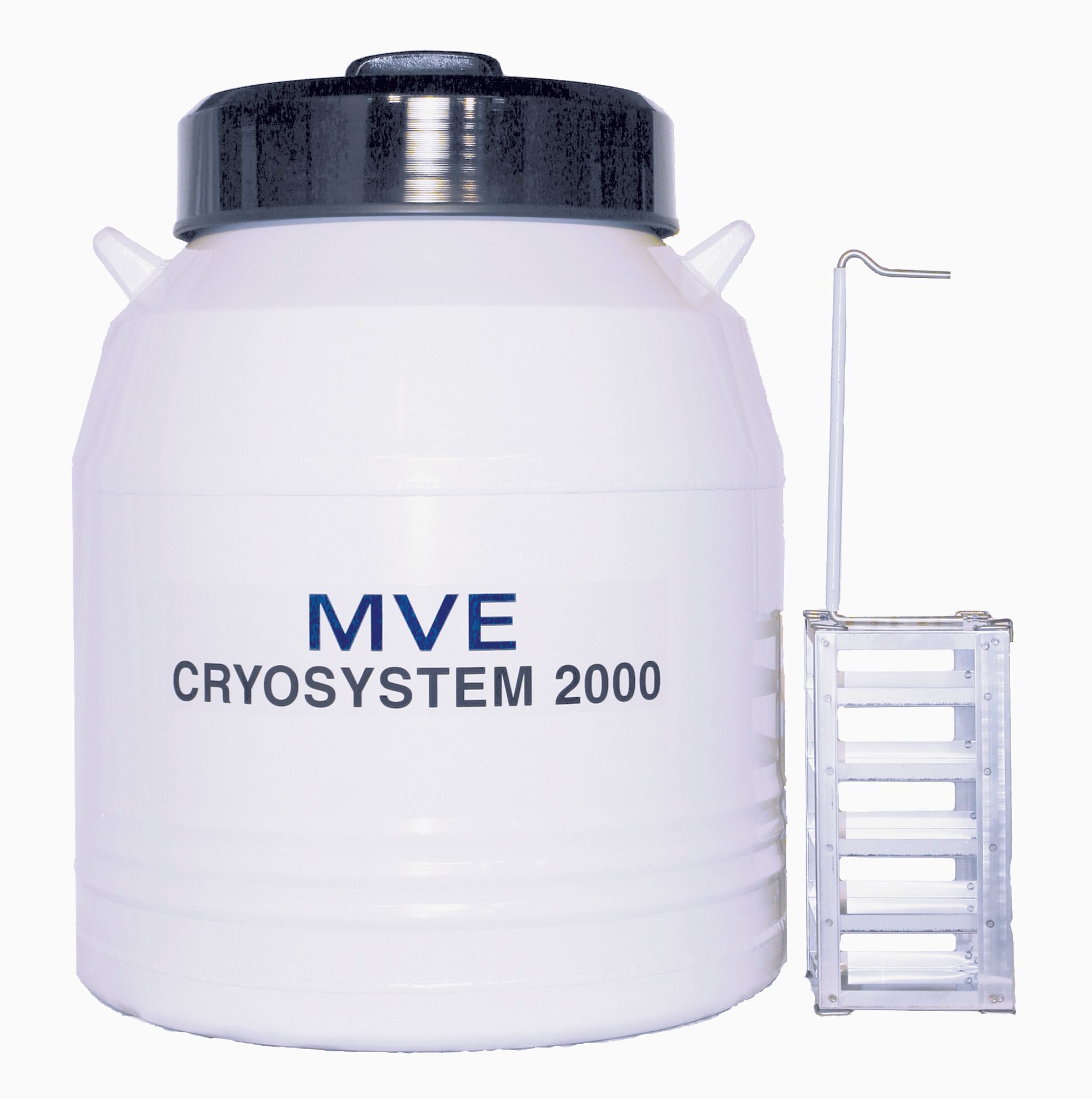

The CryoSystem 2000 is a manual MVE CryoSystem for 2,000 vials in 100-cell boxes (four racks, five boxes per rack). Estimated LN2 capacity is 71 L without inventory and 51 L with inventory, with an 8.5 in. (216 mm) neck.
Static evaporation is 0.85 L/day and working duration is 38 days (nominal). Overall height is 27.25 in. (692 mm); outer diameter is 22 in. (559 mm). Empty weight is 58 lb. (26.3 kg); full weight is 182 lb. (82.5 kg). Three-year vacuum and two-year parts warranties. This is the manual dewar, not an auto-fill freezer.
Key uses: 2,000-vial aluminum storage; labs moving up from the 750; manual LN2 fill.
Specifications
| Specification | CryoSystem 2000 |
|---|---|
| Number of Racks | 4 |
| Number of 1.2 & 2.0 ml vials 100/box | 2,000 |
| Number of 1.2 & 2.0 ml vials 25/box | - |
| Boxes per Rack | 5 |
| Specification | CryoSystem 2000 |
|---|---|
| LN2 Capacity w/o Inventory L est. | 71 L |
| LN2 Capacity w/Inventory L est. | 51 L |
| Static Evaporation Rate* | 0.85 L/day |
| Working Duration** Full Days | 38 |
| Specification | CryoSystem 2000 |
|---|---|
| Neck Opening | 8.5 in. (216 mm) |
| Overall Height | 27.25 in. (692 mm) |
| Outer Diameter | 22 in. (559 mm) |
| Weight Empty | 58 lb. (26.3 kg) |
| Weight Full | 182 lb. (82.5 kg) |
Source: MVE CryoSystem Series Spec Sheet (ML-000019 Rev 0). Figures are taken from that official MVE sheet only.
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affected by the nature of container use, atmospheric conditions, and manufacturing tolerances. Working Duration is an arbitrary reference, to estimate container performance under normal operating conditions in liquid storage. Actual working time may vary due to current atmospheric conditions, container history, manufacturing tolerances and patterns of use.
Three-year vacuum warranty; two-year parts warranty.
