Description

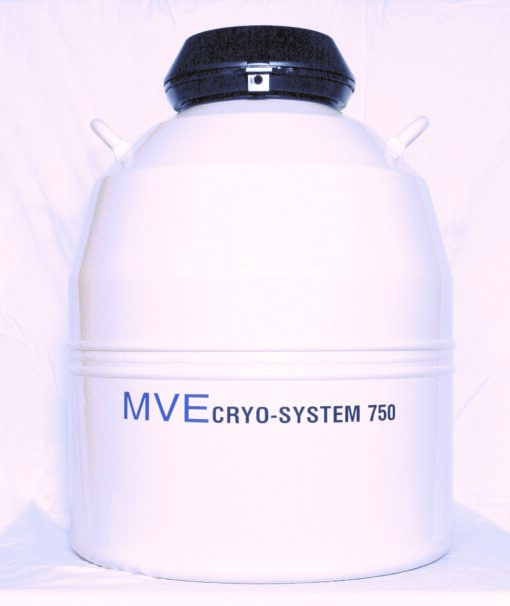

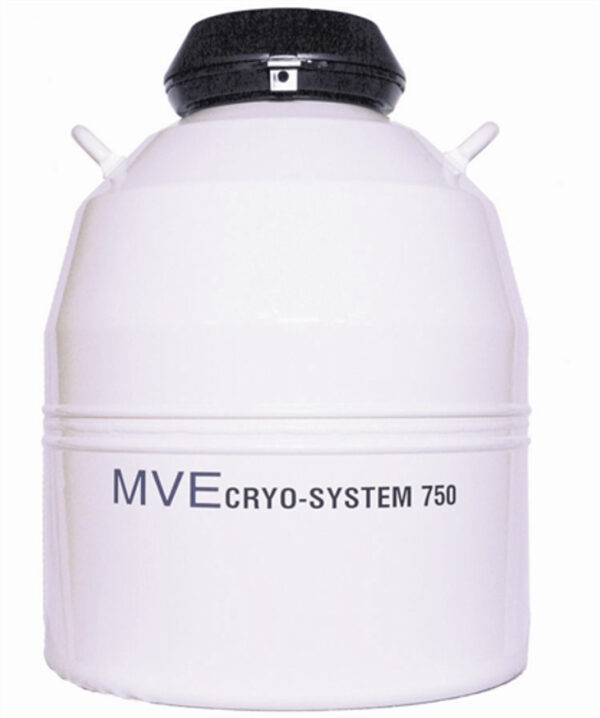

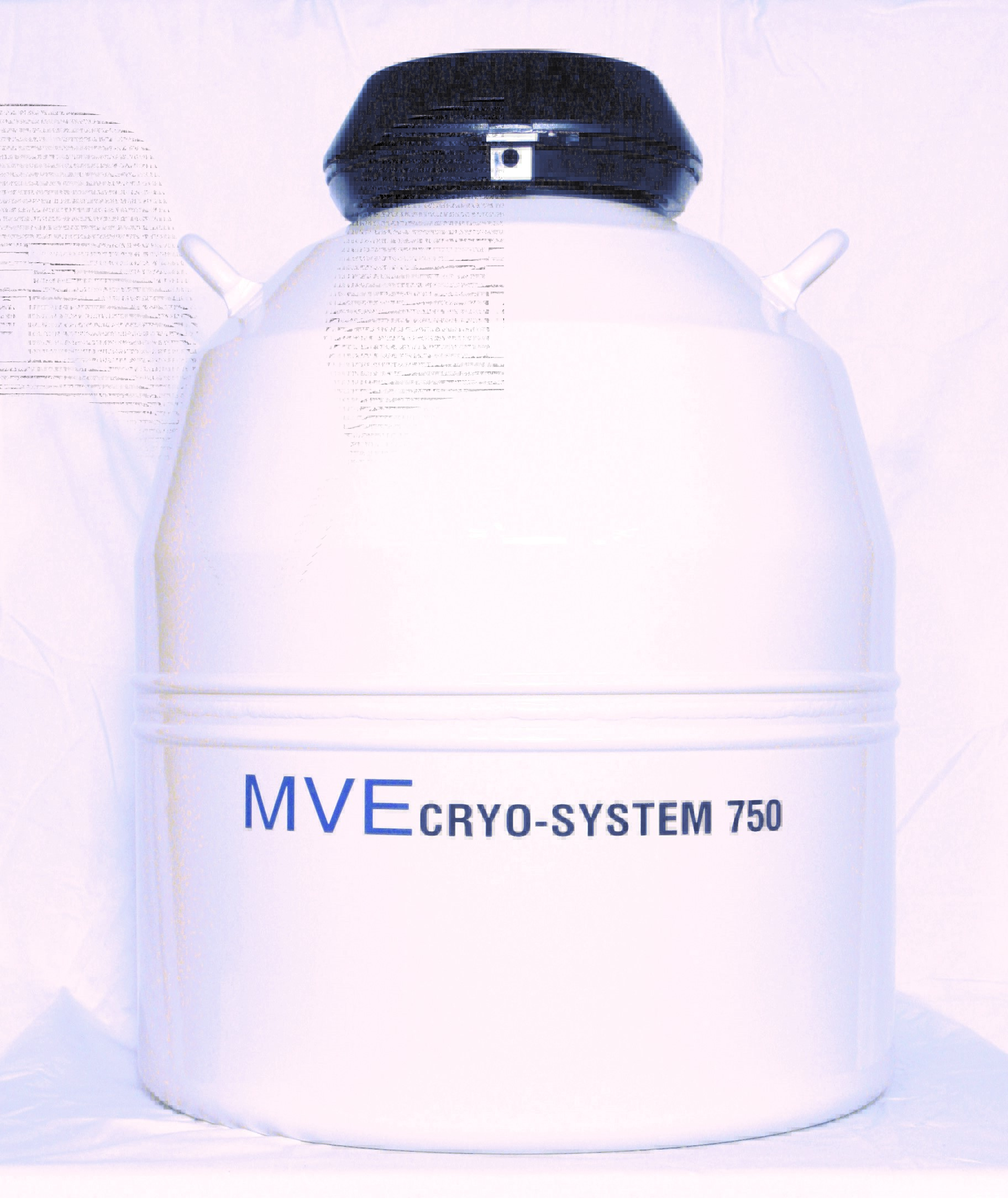

The CryoSystem 750 is the smallest manual CryoSystem on the official MVE CryoSystem Series sheet. It holds 750 vials in 25-cell boxes (six racks, five boxes per rack). Estimated LN2 capacity is 47 L without inventory and 45 L with inventory, with a 5.0 in. (127 mm) neck.
Static evaporation is 0.39 L/day and working duration is 76 days (nominal). Overall height is 26.50 in. (673 mm); outer diameter is 20 in. (508 mm). Empty weight is 42 lb. (19.0 kg); full weight is 126 lb. (57 kg). This is a manual aluminum dewar, not the CryoSystem 6000 Full Auto freezer. Warranty on this sheet is three years vacuum and two years parts.
Key uses: Mid-range vial storage in an aluminum CryoSystem; labs that want 750 vials at 25/box; manual fill, not auto-fill.
Specifications
| Specification | CryoSystem 750 |
|---|---|
| Number of Racks | 6 |
| Number of 1.2 & 2.0 ml vials 100/box | - |
| Number of 1.2 & 2.0 ml vials 25/box | 750 |
| Boxes per Rack | 5 |
| Specification | CryoSystem 750 |
|---|---|
| LN2 Capacity w/o Inventory L est. | 47 L |
| LN2 Capacity w/Inventory L est. | 45 L |
| Static Evaporation Rate* | 0.39 L/day |
| Working Duration** Full Days | 76 |
| Specification | CryoSystem 750 |
|---|---|
| Neck Opening | 5.0 in. (127 mm) |
| Overall Height | 26.50 in. (673 mm) |
| Outer Diameter | 20 in. (508 mm) |
| Weight Empty | 42 lb. (19.0 kg) |
| Weight Full | 126 lb. (57 kg) |
Source: MVE CryoSystem Series Spec Sheet (ML-000019 Rev 0). Figures are taken from that official MVE sheet only.
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affected by the nature of container use, atmospheric conditions, and manufacturing tolerances. Working Duration is an arbitrary reference, to estimate container performance under normal operating conditions in liquid storage. Actual working time may vary due to current atmospheric conditions, container history, manufacturing tolerances and patterns of use.
Three-year vacuum warranty; two-year parts warranty.
